Vanguarde
Outboard Engine

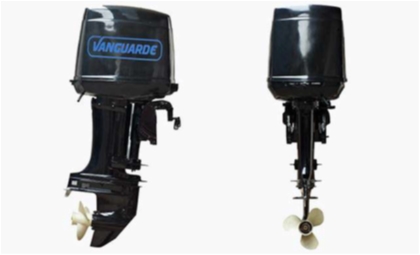

Diesel Outboard Engine
Vanguarde’s diesel outboard engine packs a punch above its weight. Its twin cylinder, V type 4-stroke engine produces 20 horsepower to deliver a seamless and fuel-efficient experience.
Vanguarde’s diesel outboard engine comes with the China Classification Society (CCS) Class Approval Certification and conforms to SOLAS requirement, MSC.81 (70) and MSC.226 (82).
Our engine is suitable for passenger boats, work boats, safety/rescue boats, fishing boats and port authority vessels.
Diesel fuel offers better fuel economy (20-30% more) and is also a safer choice especially for the oil & gas industries as it is less flammable than petrol.
Technical Specifications
| Type | Two-cylinder, V type 4-stroke, water cooling, direct injection |
|---|---|
| Bore x Stroke (mm) | 80 x 79 |
| Displacement | 0.794 |
| Max output (HP) | 20 |
| Compression ratio | 19.1 |
| Fuel consumption | 3-4 L/H, related to speed and load |
| Control type | Tiller handle, optional remote control and hydraulic tiller control is available for customizing |
| Gear shift | Forward-Neutral-Reverse |
| Gear ratio | 2 (26:13) |
| Starting method | Electric |
| Control system | Tilt control |
| Capacity of fuel tank (L) | 24 |
| Recommended gear oil | Hypoid gear oil-SAE #90 |
| Recommended propeller | 3 x 11 ¼ "x8" ~ 3 x 11 ¼ "x13" |
| Max prop size (diam. X pitch) | 3 x 11 ¼ "x13" |
| Overall dimension (LxWxH) | 1100 x 450 x 1450 |
| Weight (kg) | 98 |
| Noise dB (A) | 78 |
| Shipping dimension(LxWxH) | 155 x 62 x 85 |
| Shipping weight (kg) | 195 |
