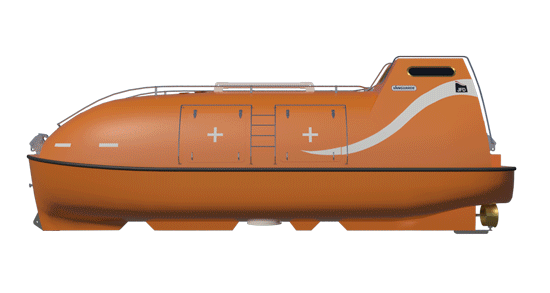

Self-Propelled Hyperbaric Lifeboat
In the event of a major incident, the Self-Propelled Hyperbaric Lifeboat (SPHL) is to excavate and rescue the divers from the dive support vessel while they are under a hyperbaric condition.
Vanguarde’s Self-Propelled Hyperbaric Lifeboat (SPHL) is designed and built to SOLAS 86 regulations and CLASS approved by ABS and DNV. The boat has integrated a hyperbaric chamber with a fully equipped saturation diving system.
The lifeboat is designed to be launched by a gravity davit system, equipped with the lifeboat release and release system – ‘Csafe’ Hook. The system supports all launching and recovery functions as required by IMO/SOLAS/ABS.
The SPHL is available in different sizes, up to 24 divers per SPHL.
Vanguarde’s Self-Propelled Hyperbaric Lifeboat comes with the followings
- Approved by major classification societies and flag states
- Integrate alternative hyperbaric chambers and diving systems for our respective client’s needs
- Support up to 72 hours of survival capability
- Support up to 300m dive depth
- Excellent sea-keeping and manoeuvrability with additional bow thruster
- Superior interval space for easy manoeuvre around the chamber
- Additional storage of essential supplies
Hyperbaric Lifeboats - SPHL
| MODEL | DIMENSION (LxBxD) M | CAPACITY (MEN) | SPEED (KNOTS) | HOOKDIST (M) | LOADED (KG) |
|---|---|---|---|---|---|
| VG9.50HLB | 9.50 x 3.30 x 3.75 | 12+4 | ≥6 | 8.7 | 18,000 |
| VG10.50HLB | 10.50 x 3.30 x 3.75 | 18+4 | ≥6 | 9.7 | 22,000 |
| VG13.00HLB | 13.00 x 3.30 x 3.75 | 22+4 | ≥6 | 12.28 | 25,000 |
| VG13.00HLBLR | 13.00 x 3.30 x 3.75 | 18+4(500msv) | ≥6 | 12.28 | 26,500 |
