MODEC
Mooring Winch Brake Test Kit

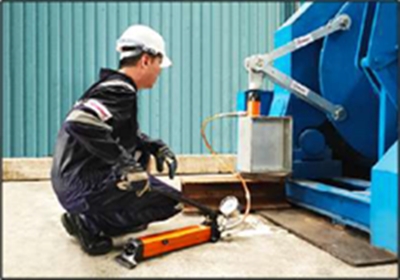

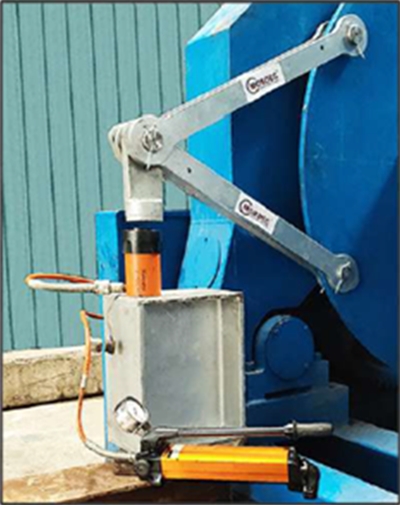

Simulates the load on the line by means of a hydraulic cylinder jack,
producing a torque on the Winch drum.
Its compact design is suitable to conduct:
Brake Holding Test
- To ensure brakes will hold at a given load
Brake Rendering Test
- To ensure brakes act as a safety device for mooring lines
- To ensure brakes will render (slip) to allow the lines to shed its load before it breaks
Easy to use
- Pressure Gauge - Calibrated to read the calculated Jacking force. No need for conversion.
- Operation - Designed for one person to install and operate.
Fits standard mooring winch drum
- Location of the holes to be drilled on the flange based on ISO 3730 standard
Rugged and Durable
- Certificate of Conformity provided
- Pressure Gauge with calibration report
Available sizes
| Model Number | Brake Holding (T) | Ship Design MBL (T) | LDBF (T) |
|---|---|---|---|
| BTK-MW-100 | 15 to 31 | 19 to 39 | 20 to 41 |
| BTK-MW-200 | 31 to 73 | 39 to 91 | 41 to 96 |
| BTK-MW-300 | 73 to 105 | 91 to 131 | 96 to 138 |
* LDBF = Line Design Break Force
* Actual Specifications are subject to Winch Information
